What Is a Wheel Bolt Pattern? PCD and Lug Patterns Explained

Key takeaways: A wheel bolt pattern, also called PCD (pitch circle diameter), describes two things at once: how many lug holes a wheel has, and the diameter of the imaginary circle those holes sit on. It is written as count x diameter, so 5x120 means five lugs on a 120 mm circle. The pattern has to match your hub exactly, and even a match does not guarantee fitment, because center bore, offset, width, and brake clearance all still have to work.

What is a wheel bolt pattern?

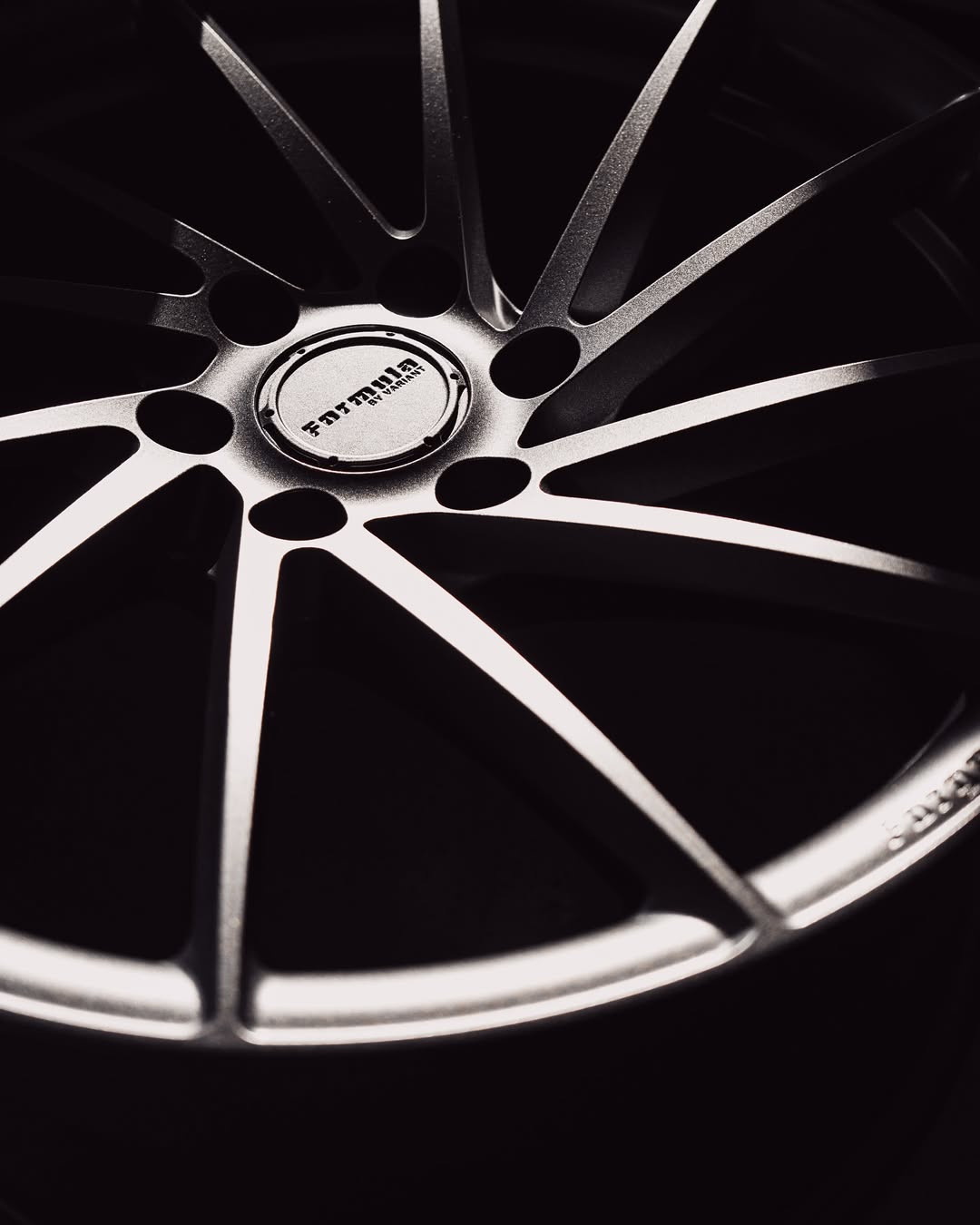

A wheel bolt pattern is the arrangement of the lug holes on the back of a wheel. Picture an imaginary circle drawn through the center of every lug hole. The number of holes on that circle and the diameter of the circle itself are what define the pattern. Engineers call that circle the pitch circle diameter, or PCD, and you will see the two terms used interchangeably on spec sheets and in forum threads.

It exists for one reason: the wheel has to bolt to the hub, and the hub has a fixed stud or bolt layout set by the vehicle manufacturer. Get it wrong and the wheel physically will not mount. There is no partial fit and no workaround at the lug itself. This is the first filter in any wheel search, which is why every reputable listing leads with it.

How do you read a bolt pattern like 5x120?

The format is always the same: lug count first, circle diameter second.

• The first number is how many lug holes the wheel has. Five is by far the most common on modern performance cars. Four shows up on lighter economy cars, six and eight on trucks and SUVs.
• The second number is the pitch circle diameter, almost always in millimeters. A 5x120 wheel has five holes spaced evenly around a 120 mm circle.
• Inch-based patterns still exist, mostly on older domestic vehicles. You will see 5x4.75" written as 5x120.65 in metric. That 0.65 mm looks like nothing, but it is a different pattern and the two are not interchangeable.

Similarly, 5x114.3 (the metric conversion of 5x4.5") and 5x115 are separate patterns despite sitting less than a millimeter apart. Forcing a near-miss pattern onto a hub loads the studs in shear instead of clamping the wheel flat against the hub face, and that is exactly how wheels come loose at speed.

How do you measure a bolt pattern yourself?

The method depends on whether your lug count is even or odd.

1. Even lug counts (4, 6, 8): measure straight across from the center of one stud to the center of the stud directly opposite it. That distance is your PCD.
2. Odd lug counts (5, 7): no two studs sit directly opposite each other, so measure from the center of one stud to the outer edge of the stud two positions away, skipping the one in between. That reading is a close approximation of the PCD.
3. Round to the nearest standard: if you measure roughly 112 mm on a modern BMW, you have 5x112, not 5x111.4. Manufacturers use a short list of standard patterns, so match your measurement to the nearest one rather than trusting the tape to a tenth of a millimeter.
4. Verify it another way: check the owner's manual, look at the casting on the back of your factory wheel, or run a fitment lookup by year, make, and model. A tape measure across five studs is a sanity check, not a final answer.

What bolt patterns do common performance cars use?

Here is where a few enthusiast platforms land. Center bore is included because it matters just as much as the pattern.

Notice that 5x112 covers both a BMW M3 and an Audi R8, but the center bores are nowhere near each other. That is the trap most people fall into.

Does a matching bolt pattern mean the wheel will fit?

No. A matching bolt pattern means the wheel can be bolted on. Whether it fits is a separate question with four more parts:

• Center bore: the hole in the middle of the wheel has to seat on the hub. If the wheel's bore is larger than the hub, you need hub-centric rings to center it. If it is smaller, the wheel will not go on at all. We cover this in detail in our guide to center bore and hub-centric rings.
• Offset: how far the mounting face sits from the wheel's centerline. Offset decides whether the wheel tucks under the fender or pokes past it, and whether the inner barrel clears your strut. Start with our wheel offset guide if that term is new.
• Width and diameter: a 5x112 wheel in 20x11 will bolt to a car that can only clear 20x9.5, and then rub through a fender liner on the first bump.
• Brake clearance: the spoke profile has to clear the caliper. Big-brake kits and carbon-ceramic setups routinely rule out wheels that are otherwise a perfect spec match.

This is why we build wheels to vehicle-specific fitments rather than selling one universal spec and hoping. Every set in our forged wheel lineup is specced against a real chassis, not just a bolt pattern.

Can you change a bolt pattern with adapters?

Yes, and it is worth being honest about the trade-offs. A bolt-pattern adapter mounts to your hub in one pattern and presents a different pattern to the wheel. Quality units are machined from forged aluminum or steel, are hub-centric on both sides, and use their own set of studs.

The costs are real: every adapter adds thickness, which pushes the wheel outward and changes your effective offset, and it adds another clamped joint and another set of torque checks between the hub and the wheel. Wheels are a safety-critical part, governed by industry test standards like SAE J2530 for aftermarket wheels, and stacking hardware in the load path is not something to do casually. If a correct-pattern wheel exists for your car, buy that instead. Our take on the related question of stacking hardware is in are wheel spacers safe.

Frequently asked questions

Is 5x114.3 the same as 5x115?

No. They differ by 0.7 mm, which is enough that the studs will not line up with the lug holes cleanly. Do not force it, and do not use conical seats to split the difference. Treat them as entirely separate patterns.

Can I put a 5x120 wheel on a 5x112 car?

Not directly. It would require bolt-pattern adapters, which change your effective offset and add another joint to the load path. When a wheel is available in your car's native pattern, that is always the better answer.

How do I find my bolt pattern without measuring it?

Check the owner's manual, look for the casting marks on the back of a factory wheel, or use a fitment lookup by year, make, and model. Tire pressure placards on the door jamb list tire sizes, not bolt patterns.

Does bolt pattern affect wheel strength?

Indirectly. A larger PCD spreads clamping load over a wider circle, which generally helps, and more lugs spread it further still. But wheel strength is dominated by construction and material, not lug count. A forged 5-lug wheel will comfortably outperform a cast 6-lug wheel of the same size.

What is the difference between bolt pattern and center bore?

Bolt pattern is what holds the wheel on. Center bore is what centers it. The lugs clamp the wheel to the hub face, while the center bore locates the wheel concentrically on the hub so it spins true. Both have to be right, and a wheel that matches on one and misses on the other will vibrate or will not mount at all.

If you want the full vocabulary behind wheel specs, the wheel sizing reference on Wikipedia is a solid, neutral overview of how the measurements relate to each other.

Written by Taylor Smith, co-founder of Variant Alloy Wheels, who has spent nearly two decades in the automotive aftermarket.
