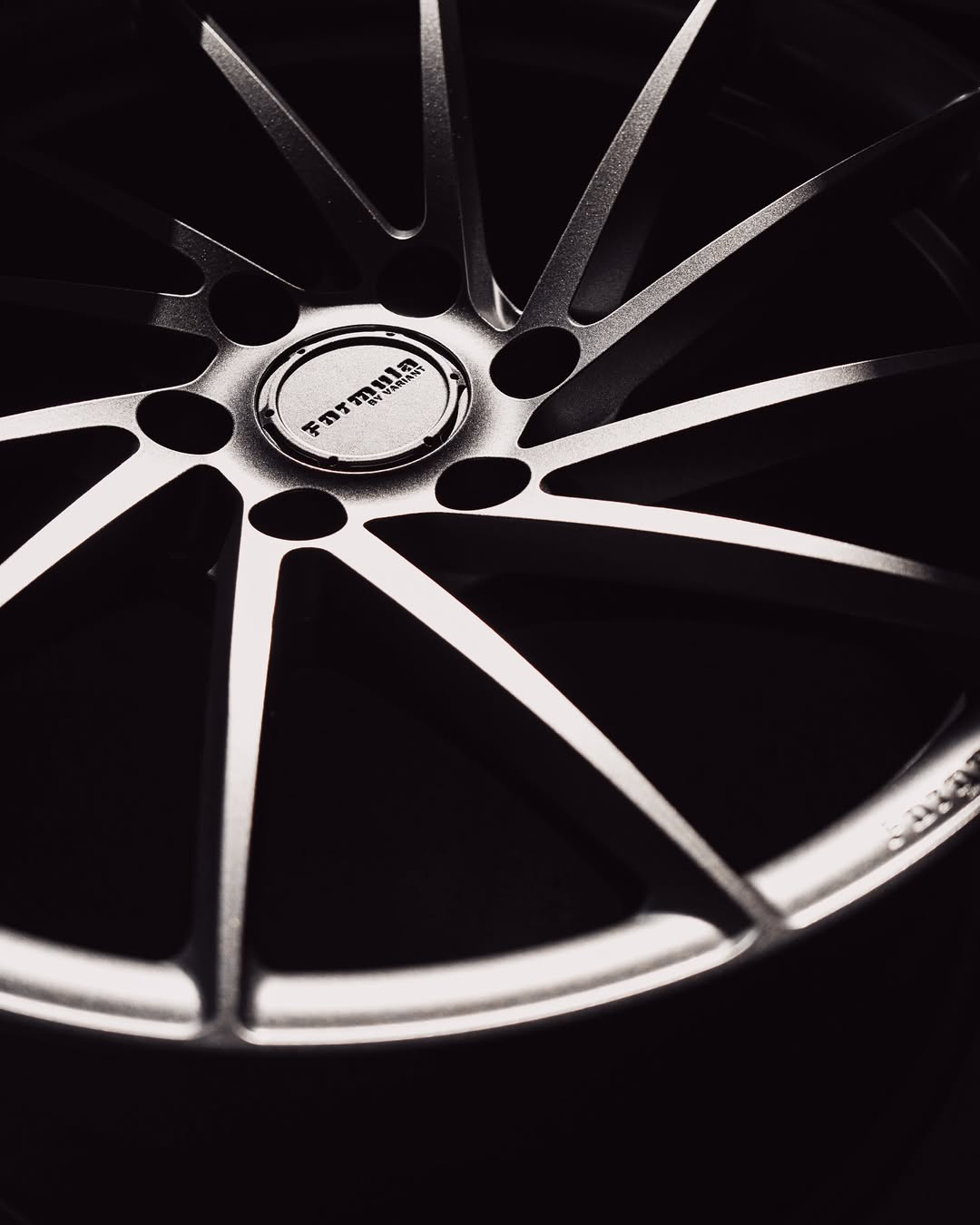

What Is a Bolt Pattern, and How Do You Measure It?

Key takeaways: A bolt pattern (also called PCD, or pitch circle diameter) describes two things at once: how many lug holes a wheel has, and the diameter of the imaginary circle those holes sit on. It is written as two numbers, like 5x112 or 5x120, meaning five lugs on a 112 mm or 120 mm circle. To get the right fitment, your new wheel's bolt pattern must match your hub exactly, because the bolt pattern cannot be adapted safely without engineered hardware.

If you have ever shopped for aftermarket wheels, you have seen a number like 5x112 next to the listing and wondered what it actually means. The bolt pattern is one of the few wheel specs that is truly pass-or-fail: get it wrong and the wheel physically will not bolt to your car. Get it right and you have cleared the single most important fitment hurdle. Here is how it works and how to measure it yourself.

What does a bolt pattern actually mean?

A bolt pattern is the stud (or bolt) count combined with the diameter of the circle those studs form. The first number is how many lugs the wheel uses. The second number is the pitch circle diameter (PCD), measured in millimeters, of the imaginary circle that passes through the center of every lug hole. A wheel marked 5x120 has five lugs arranged on a 120 mm circle. A wheel marked 5x112 has five lugs on a 112 mm circle. Those two are only 8 mm apart, but they are not interchangeable.

Different automakers standardize on different patterns. Audi and Mercedes-Benz have long used 5x112. BMW historically used 5x120, then transitioned newer models to 5x112 with the current G-chassis cars. Chevrolet's Corvette C8 uses 5x120, while the Tesla Model S (including the Plaid) uses 5x120 as well. The Toyota GR Supra, which shares its platform with BMW, uses 5x112. Knowing your car's pattern is the starting point for any wheel purchase.

How do you measure a bolt pattern?

The method depends on whether your wheel has an even or odd number of lugs, because the geometry is different for each.

• Even-lug patterns (4, 6, or 8 lugs): Measure straight across from the center of one lug hole to the center of the hole directly opposite it. That center-to-center distance is your PCD.
• 5-lug patterns: No two holes sit directly across from each other, so you cannot measure straight through the middle. Instead, measure from the center of one lug hole to the outer edge of the hole two positions away (skipping the adjacent hole). That distance is a very close approximation of the true 5-lug PCD.

The most reliable approach is a cheap bolt-pattern gauge, which removes the guesswork entirely. If you are measuring by hand, take the reading two or three times and average it. A 1 to 2 mm error is the difference between 5x112 and a pattern that will not fit.

Bolt pattern vs. center bore vs. offset: what's the difference?

Bolt pattern is only one of three fitment specs that all have to line up. They are easy to confuse, so here is how they differ.

All three must be correct. A wheel with the right bolt pattern but the wrong center bore will sit on the studs without locating properly on the hub, which can cause vibration. We cover the third spec in depth in our guide to wheel offset.

Can you change a bolt pattern with an adapter?

Yes, but carefully. A bolt-pattern adapter is a machined plate that bolts to your hub with one pattern and presents a different pattern on its outer face, letting you run wheels your car was not built for. Quality hub-centric adapters from a reputable maker are used widely, but they add unsprung weight, push the wheel outward (changing effective offset), and depend entirely on correct installation and torque. They are an engineering solution, not a shortcut. The cleaner path is to buy wheels in your car's native bolt pattern, which is exactly why we build true forged wheels in correct OEM fitments rather than generic patterns.

Why bolt pattern matters when buying forged wheels

Because the bolt pattern is non-negotiable, it should be the first filter in your search. At Variant, every wheel is a true forged wheel built for a specific application, so the bolt pattern, center bore, and offset are matched to your car from the start. If you want to skip the spec-decoding entirely, our vehicle-specific fitments are organized by car, and our forged monoblock options in the EVO Collection are configured to the correct pattern for your chassis. Verify your bolt pattern, confirm the center bore and offset, and the rest of the buying decision gets a lot simpler.

Frequently asked questions

What does 5x112 mean on a wheel?

It means the wheel has five lug holes arranged on a circle 112 mm in diameter. The first number is the lug count and the second is the pitch circle diameter (PCD) in millimeters.

Are 5x112 and 5x120 interchangeable?

No. They differ by 8 mm in pitch circle diameter, so a 5x120 wheel will not bolt to a 5x112 hub or vice versa. You would need an engineered bolt-pattern adapter to bridge the difference.

How do I find my car's bolt pattern?

Check the owner's manual, the existing wheel, or a fitment database, then confirm by measuring. For five-lug wheels, measure from the center of one hole to the outer edge of the hole two positions over.

Is bolt pattern the only spec I need to match?

No. Bolt pattern determines whether the wheel mounts at all, but you also need the correct center bore and offset for a safe, vibration-free fit.

Written by Taylor Smith, co-founder of Variant Alloy Wheels, who has spent nearly two decades in the automotive aftermarket.
